In modern industrial processing, thermal management is the quiet backbone of operational continuity, energy efficiency, and safety. From high-temperature chemical synthesis and polymer extrusion to food processing and cryogenic pharmaceutical reactions, controlling thermal energy requires specialized media capable of transporting vast amounts of heat safely and predictably. These specialized media are known as Heat Transfer Fluids, or thermal oils.
As global industries strive for higher process yields, reduced carbon footprints, and lower total cost of ownership, understanding the chemistry, selection criteria, and leading manufacturers of heat transfer fluids has become an essential requirement for plant engineers, system designers, and procurement managers.
1. Fundamentals of Heat Transfer Fluids: Steam vs Liquid-Phase HTFs
For over a century, saturated steam was the default medium for industrial heating. While steam offers high latent heat capacity, it suffers from a fundamental thermodynamic limitation: vapor pressure scales exponentially with temperature.
To deliver heat at 300 degrees Celsius, a saturated steam system requires an operating pressure exceeding 85 bar. Operating at these extreme pressures mandates heavy-walled pressure vessels, specialized high-pressure piping, expensive boiler feed-water treatment, and continuous regulatory inspections.
Liquid-phase heat transfer fluids eliminate extreme pressure requirements. Engineered synthetic and refined fluids absorb heat at a central heater and circulate through a closed loop at near-atmospheric pressures, even at temperatures up to 400 degrees Celsius.
Key operational benefits include:
Enhanced Plant Safety: Low operating pressures drastically reduce the risk of high-pressure steam explosions or catastrophic pipe ruptures.
Corrosion and Freeze Protection: Non-water-based heat transfer fluids are non-corrosive to carbon steel and stainless steel alloys and do not freeze in cold climates.
Precise Multi-Zone Temperature Control: A single primary fluid loop can feed multiple heat exchangers, reactors, or jacketed vessels, each regulated to distinct temperature setpoints within tight tolerances, often within plus or minus 1 degree Celsius.
Lower Overall Maintenance: Heat transfer fluid loops eliminate boiler blowdown routines, scale formation, chemical water treatment, and steam trap maintenance.
2. Chemical Classifications of Heat Transfer Fluids
Selecting the correct fluid requires understanding the fundamental chemical families of heat transfer fluids, as each molecular structure exhibits distinct thermal limits, viscosity profiles, and operational lifespans.
A. Refined Mineral Oils Refined from paraffinic or naphthenic crude oil cuts, mineral-based fluids are economical solutions for moderate operating conditions. Operating Range: minus 10 to 300 degrees Celsius. Best Uses: General manufacturing, asphalt heating, wood panel pressing, and non-critical industrial loops. Limitations: Prone to thermal cracking and oxidation at bulk temperatures exceeding 300 degrees Celsius, leading to sludge formation and tube coking.
B. Synthetic Hydrocarbons and Alkylbenzenes Chemically engineered by alkylating benzene rings, alkylbenzenes and synthetic hydrocarbons offer higher thermal stability and lower pour points than natural mineral oils. Operating Range: minus 25 to 315 degrees Celsius. Best Uses: Resin production, textile finishing, and mid-temperature chemical processing. Benefits: Resistance to sludge formation and superior low-temperature pumpability for cold weather startups.
C. Synthetic Aromatics and Eutectic Mixtures Composed of modified aromatic structures, such as diphenyl oxide and biphenyl eutectics, dibenzyltoluene, or hydrogenated terphenyls, these synthetic fluids represent the peak of high-temperature liquid and vapor-phase technology. Operating Range: minus 35 to 400 degrees Celsius. Best Uses: Petrochemical reactors, polyester resin polymerization, fine chemical synthesis, and Concentrated Solar Power plants. Benefits: Outstanding resistance to thermal degradation, extremely low coking rates, and service lifespans spanning 5 to 10 years or more under proper operating conditions.
D. Silicone Fluids Polymeric silicone liquids feature carbon-silicon-oxygen backbones that provide incredible chemical inertness and wide temperature versatility. Operating Range: minus 90 to 430 degrees Celsius. Best Uses: Cryogenic pharmaceutical batch synthesis, environmental test chambers, and extreme-temperature process loops. Benefits: Virtually non-fouling breakdown products, ultra-low viscosity at sub-zero temperatures, and minimal toxicity.
E. Food-Grade Fluids Specifically formulated for facilities where incidental contact between the thermal fluid and consumable goods could occur during a heat exchanger leak. Base Formulations: Highly refined white mineral oils or non-toxic synthetic polyalphaolefins. Compliance: Must hold official NSF HT1 registration and satisfy FDA guidelines for incidental food contact.
3. Key Technical Criteria for Fluid Selection
Plant engineers must evaluate five core physical parameters when matching a heat transfer fluid to a process system:
Bulk Temperature Limit: The maximum average temperature of the fluid in the main circulating loop. Exceeding this limit causes accelerated thermal breakdown, gas generation, and rapid fluid aging.
Film Temperature Limit: The peak localized temperature of the fluid boundary layer touching heater tube walls. Exceeding this causes immediate thermal cracking, fluid coking, and carbon fouling on heater coils.
Low-Temperature Viscosity: Kinematic viscosity at ambient or sub-zero conditions determines startup pump head requirements. High viscosity can lead to pump cavitation or complete flow starvation in cold climates.
Vapor Pressure: Equilibrium pressure exerted by fluid vapor at maximum operating temperature. Choosing low vapor pressure fluids allows low-pressure system designs.
Specific Heat and Conductivity: Thermal capacity determines the ability to absorb and transfer thermal energy. Higher coefficients reduce the required heat exchanger surface area and volumetric pump flow rates.
4. Industry-Specific Applications
Chemical and Petrochemical Processing: High-temperature reactors, distillation columns, and reboilers require steady thermal input without hotspots. Synthetic aromatics operating up to 400 degrees Celsius allow multi-stage chemical synthesis at uniform temperatures, maximizing product yield and purity.
Pharmaceuticals and Fine Chemicals: Batch crystallization and active pharmaceutical ingredient synthesis often demand single-fluid loops capable of rapid thermal transitions. For example, cooling a vessel down to minus 80 degrees Celsius for crystallization and subsequently heating it to 200 degrees Celsius for purification. Wide-temperature synthetic and silicone fluids eliminate the need for dual-media piping circuits.
Food and Beverage Manufacturing: Commercial bakeries, industrial fryers, spray drying towers, and edible oil deodorization lines rely heavily on indirect heating. Using certified NSF HT1 fluids ensures full HACCP compliance, protecting food products and brand reputation against micro-leak contamination.
Concentrated Solar Power: Utility-scale solar power facilities utilize parabolic trough collectors to focus solar radiation onto receiver tubes. Synthetic aromatics and silicone fluids circulate through these receivers at 390 to 400 degrees Celsius, carrying heat to steam turbines for electricity generation.
5. Representative Global Heat Transfer Fluid Manufacturers
The global heat transfer fluid landscape features a mix of legacy Western chemical conglomerates and specialized global innovators providing high-performance synthetic alternatives.
Eastman Chemical Company Eastman is a dominant force in the global heat transfer fluid market with its Therminol and Marlotherm brands. Notable products include Therminol 66, the global benchmark for synthetic liquid-phase fluids operating up to 345 degrees Celsius, Therminol VP-1 for eutectic liquid or vapor phase operation up to 400 degrees Celsius, and Therminol XP for food-grade environments.
Dow Inc. Dow Chemical is a pioneer in synthetic organic and silicone fluid chemistry. Its DOWTHERM brand has been specified in industrial plants for decades, led by DOWTHERM A for high-temperature chemical systems and solar fields up to 400 degrees Celsius, and SYLTHERM 800, a high-stability silicone polymer fluid operating from minus 40 to 400 degrees Celsius.

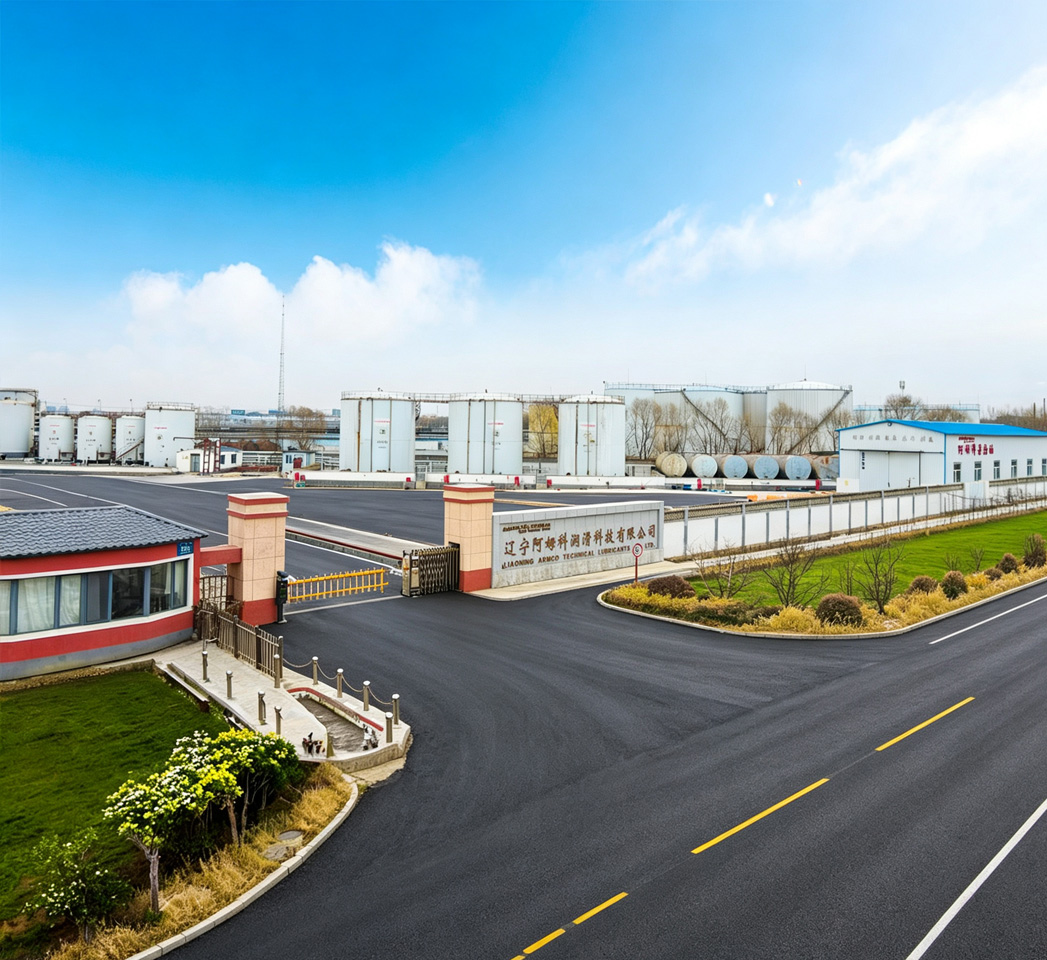

Liaoning ARMCO Technical Lubricant Co., Ltd.

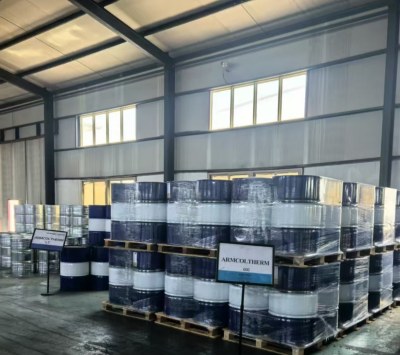

Liaoning ARMCO Technical Lubricant Co., Ltd., operating globally under the Armcoltherm brand, has emerged as a premier manufacturer specializing in advanced synthetic heat transfer technology and industrial lubricants.
Differing from traditional regional suppliers, Armco focuses on precision molecular engineering, delivering direct drop-in cross-reference solutions compatible with established global brands like Therminol, Dowtherm, Marlotherm, and Syltherm. Armco's manufacturing leverages integrated chemical supply chains, offering global engineering projects high thermal performance combined with attractive cost-to-performance ratios.
Key Armcoltherm product grades include: Armcoltherm 550: Synthetic alkylbenzene fluid operating from minus 25 to 315 degrees Celsius, benchmarked against Therminol 55. Armcoltherm 600: NSF HT1 certified food-grade synthetic fluid operating from minus 10 to 320 degrees Celsius, benchmarked against Therminol XP. Armcoltherm 680: High-temperature synthetic fluid operating from minus 7 to 350 degrees Celsius, benchmarked against Therminol 66. Armcoltherm 400: Eutectic high-temperature fluid operating from 12 to 400 degrees Celsius, benchmarked against Dowtherm A. Armcoltherm SF-5: Polydimethylsiloxane silicone fluid operating from minus 40 to 430 degrees Celsius, benchmarked against Syltherm 800. Armcoltherm LD: Cryogenic wide-temperature synthetic fluid operating from minus 90 to 200 degrees Celsius, benchmarked against Therminol D12.
Key Armco advantages include full temperature coverage from cryogenic sub-zero levels up to 430 degrees Celsius, NSF HT1 food-grade certification, and direct chemical compatibility that enables straightforward system top-ups or complete changeouts without re-engineering equipment.
Fragol AG and Paratherm Based in Europe and North America respectively, Fragol (FRAGOLTHERM) and Paratherm focus on specialty custom thermal fluid blending, food-grade media, and regional technical services.
6. System Maintenance, Flushing, and Lifecycle Care
Thermal fluids age through two primary mechanisms:
Thermal Cracking: Occurs when localized fluid temperatures exceed the maximum film temperature limit. Molecular bonds break, forming volatile low-boilers, which lower system flash points, and heavy high-boilers, which form carbon coking inside heater coils.
Oxidation: Occurs when hot fluid above 60 degrees Celsius comes into direct contact with atmospheric oxygen in the expansion tank. Oxidation generates organic acids, increases fluid viscosity, and forms sticky sludge on internal piping.
Essential Preventive Maintenance Guidelines:
Inert Gas Blanketing: Maintain a low-pressure nitrogen blanket of 0.2 to 0.5 bar on the expansion tank. Nitrogen seals out oxygen, preventing oxidation and extending fluid life significantly.
Annual Laboratory Condition Analysis: Sample fluid annually and analyze four key health metrics: kinematic viscosity, flash point, total acid number, and insoluble carbon content.
Flushing Before Fluid Replacement: Never pour new synthetic fluid into a fouled system. Residual carbon sludge acts as a thermal insulator and rapidly degrades fresh oil. Circulate a specialized cleaning agent, such as Armcoltherm Clean OS, to dissolve carbon scale and flush out contaminants prior to refilling.
7. Future Trends in Heat Transfer Technology
As industrial manufacturing transforms, three major trends are shaping the future of heat transfer fluids:
Decarbonization and Waste Heat Recovery: Industries are implementing Organic Rankine Cycle systems and high-temperature thermal storage to capture waste heat from industrial exhaust and solar collectors, driving demand for specialized thermal fluids with long-term thermal endurance.
Expansion of Food Safety Standards: Global regulatory scrutiny is driving food, beverage, and pharmaceutical processors away from standard mineral oils toward NSF HT1 registered synthetic fluids, eliminating contamination liability.
Global Supply Diversification: Plant managers are increasingly looking beyond traditional single-source suppliers. Manufacturers like Liaoning Armco provide international plant operators with reliable, high-purity synthetic fluid alternatives that optimize procurement budgets while maintaining technical standards.
Conclusion
Heat transfer fluids are vital enablers of modern high-efficiency manufacturing. By replacing high-pressure steam with liquid-phase synthetic thermal oils, industrial facilities achieve safer operation, lower maintenance costs, and precise temperature control.
Whether specified for a high-temperature petrochemical reactor, a cryogenic pharmaceutical suite, or an NSF HT1 food processing line, matching your process parameters with proven global fluid technologies, such as Eastman Therminol, Dow DOWTHERM, or Armco Armcoltherm, guarantees long-term process reliability and optimal energy performance.
