Installing an AT Protocol PDS on a Synology NAS

@pixeline.be

My (completely biased) opinion is that most people who have a NAS at home own a Synology NAS. I'm one of them, I have a DS716+II

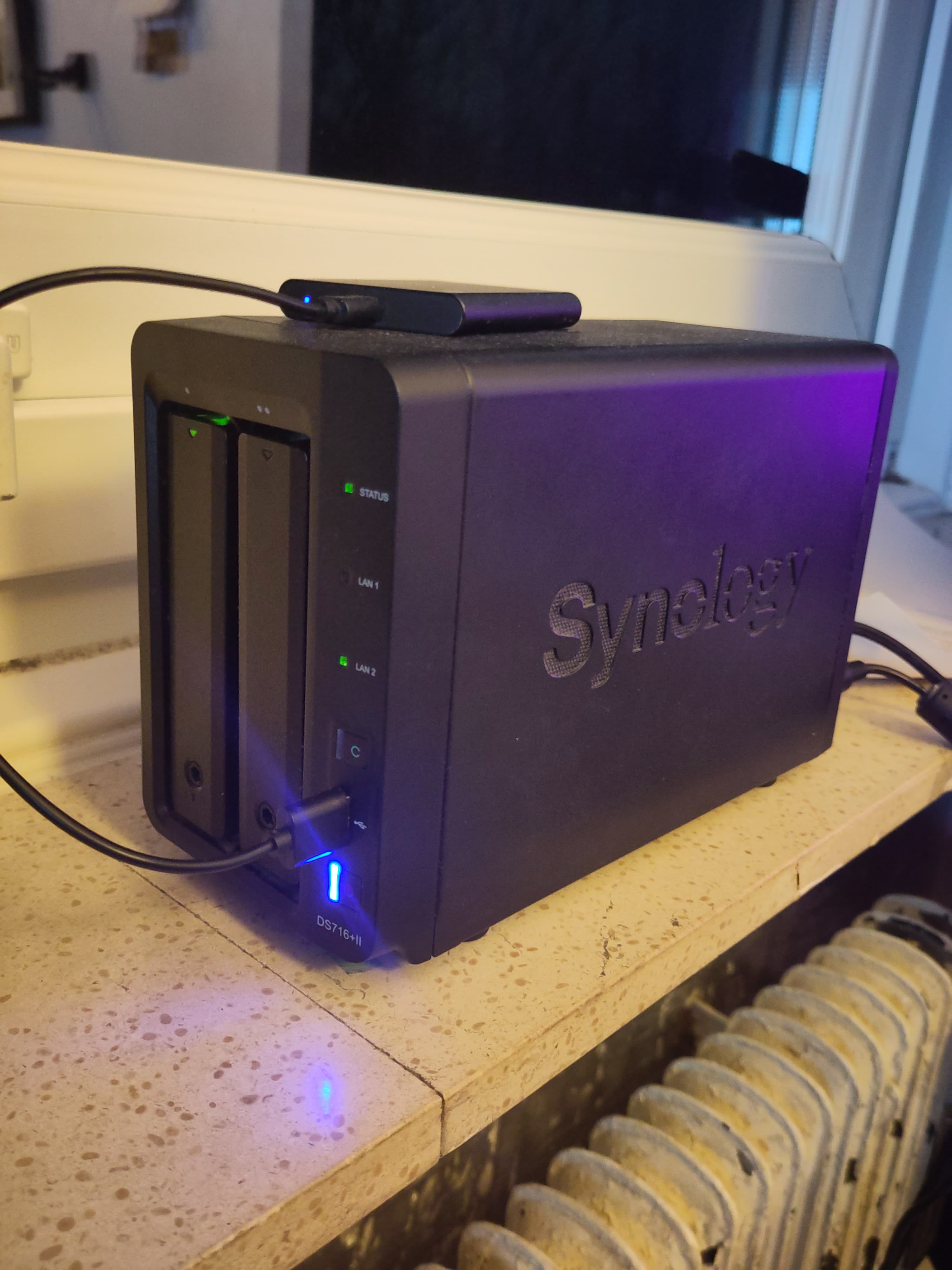

My good old Synology NAS

If you're anything like me, your Synology NAS is already the quiet workhorse humming in a corner somewhere, storing backups, media, half-finished side projects, and who knows what else. When I realized I could run my own AT Protocol Personal Data Server (PDS) on it, I knew I had to try.

Running a PDS on a Synology NAS is great because:

  • Plenty of storage: Most of us have way more NAS storage than we’ll ever use. Perfect for blob storage.
  • Always on: The NAS is literally built to stay awake all year.
  • Cheap to run: You already paid for the hardware. Might as well get more value out of it.
  • Own your identity: No cloud host in the middle. Your Bluesky identity lives on your box.

The standard installer.sh script really doesn’t like Synology DSM (or maybe it's the other way around, I'm not very good with understanding relationships!)

Anyways, here is how I got it working.

Why the Standard installer.sh Doesn't Work

The official PDS installer expects a “normal” Linux environment. Synology DSM is not that.

Here are a few issues I ran into:

  1. Synology paths are different: Everything lives under /volume1/ or /volume2/.

  2. Docker behaves differently: DSM wraps Docker in its own UI and handles permissions its own way.

  3. Ports 80 and 443 are already used: DSM uses them for its web interface.

  4. No systemd: The installer expects it and gets confused.

  5. Permissions can be tricky: It is easy to hit “permission denied” errors until the paths and ownership are set up properly.

This guide avoids those problems by doing a manual setup that plays nicely with DSM.

Prerequisites

Before jumping in, make sure you have:

  • A Synology NAS running DSM 7 or later

  • Administrator access to your NAS

  • Administrator access to your router

  • A way to get a hostname (either a domain you own, or use Synology's free DDNS service)

  • Basic SSH skills (being able to copy and paste commands is enough)

Note: If your ISP gives you a dynamic IP (most do), Synology's built-in DDNS feature is perfect for this. You do not need to buy a domain name.

Part 1: DSM Configuration

Step 1: Enable SSH Access

  1. Log into DSM.
  2. Open Control Panel → Terminal & SNMP.
  3. Enable SSH service.
  4. Note the port (default is 22).
  5. Click Apply.

You will use this to run the commands in the rest of the guide.

Step 2: Install Docker

  1. Open Package Center in DSM.
  2. Search for Docker.
  3. Install it.
  4. Open Docker once to confirm it is working.

Step 3: Create Required Directories

SSH into your NAS:

ssh your-username@your-nas-ip

Then create the folder structure:

sudo mkdir -p /volume1/docker/bluesky-pds
sudo mkdir -p /volume1/docker/bluesky-pds/pds-data
sudo mkdir -p /volume1/docker/bluesky-pds/caddy/data
sudo mkdir -p /volume1/docker/bluesky-pds/caddy/etc/caddy

Give yourself permission to work in there (replace your-username with your real DSM username):

sudo chown -R your-username:users /volume1/docker/bluesky-pds

Step 4: Generate Caddy Instance UUID

Caddy needs a UUID. Generate it like this:

cd /volume1/docker/bluesky-pds
uuidgen > caddy/data/caddy/instance.uuid

If uuidgen is missing, use Python:

python3 -c "import uuid; print(uuid.uuid4())" > caddy/data/caddy/instance.uuid

Part 2: Router Configuration

DSM uses ports 80 and 443 for its own web interface, so the idea is:

  • Configure the router to expose ports 80 and 443 on the internet.
  • Configure the router to forward them to ports 8080 and 8443 on your NAS.

Step 1: Find Your NAS IP

In DSM, go to Control Panel → Network → Network Interface and note your NAS IP address, for example 192.168.1.100.

Step 2: Port Forwarding on Your Router

In your router web interface, create two port forwarding rules that point to your NAS IP.

Rule 1:

  • Service name: PDS HTTP
  • External port: 80
  • Internal IP: your NAS IP (for example 192.168.1.100)
  • Internal port: 8080
  • Protocol: TCP

Rule 2:

  • Service name: PDS HTTPS
  • External port: 443
  • Internal IP: your NAS IP
  • Internal port: 8443
  • Protocol: TCP

Fritz!Box users: Go to Internet → Port Sharing → Port Forwarding.

Step 3: DNS Setup

Most home internet connections have a dynamic IP address that changes periodically. If that is your situation (and it probably is), Synology's built-in Dynamic DNS (DDNS) feature is perfect for this.

Option A: Dynamic DNS (Recommended for Most Users)

If your ISP gives you a dynamic IP, use Synology's DDNS service:

  1. In DSM, go to Control Panel → External Access → DDNS.
  2. Click Add.
  3. Select Synology as the service provider (or choose another provider if you prefer).
  4. Enter a hostname like yourname.synology.me (or whatever you want).
  5. Click Test Connection to verify it works.
  6. Click OK to save.

If you use Synology's DDNS, you get a hostname like yourname.synology.me. This works perfectly for your PDS. You can also use other DDNS providers (DuckDNS, No-IP, etc.) if you prefer. Synology will automatically update the DNS record whenever your public IP changes. The hostname you create here (e.g., yourname.synology.me) will be your PDS hostname.

Option B: Static IP with Manual DNS

If you have a static IP address (or a domain you manage yourself):

  1. Find your public IP using a site like https://whatismyipaddress.com/.
  2. Create an A record in your DNS provider:
  • Type: A
  • Name: yourname (or your chosen subdomain)
  • Value: your public IP address
  • TTL: 300 (or any reasonable value)

If you want multiple user handles later, add a wildcard:

  • Type: A
  • Name: *
  • Value: your public IP address
  • TTL: 300

Part 3: PDS Configuration Files

Step 1: docker-compose.yml

Create the file /volume1/docker/bluesky-pds/docker-compose.yml and put this in it:

services:
  caddy:
    container_name: caddy
    image: caddy:2
    depends_on:
      - pds
    restart: unless-stopped
    extra_hosts:
      # Allow Caddy to reach services exposed on the NAS host (e.g. Kuma on 3001)
      - "host.docker.internal:host-gateway"
    volumes:
      - type: bind
        source: /volume1/docker/bluesky-pds/caddy/data
        target: /data
      - type: bind
        source: /volume1/docker/bluesky-pds/caddy/etc/caddy
        target: /etc/caddy
      - type: bind
        source: /volume1/docker/bluesky-pds/site
        target: /srv/site
    ports:
      - "8080:80"
      - "8443:443"
  pds:
    container_name: pds
    image: ghcr.io/bluesky-social/pds:latest
    restart: unless-stopped
    volumes:
      - type: bind
        source: /volume1/docker/bluesky-pds
        target: /pds
      - type: bind
        source: /volume1/docker/bluesky-pds/pds-data
        target: /pds-data
    env_file:
      - ./pds.env
  pdsdash:
    container_name: pdsdash
    image: nginx:alpine
    restart: unless-stopped
    volumes:
      - type: bind
        source: /volume1/docker/bluesky-pds/pds-dash/dist
        target: /usr/share/nginx/html
      - type: bind
        source: /volume1/docker/bluesky-pds/pds-dash/nginx.conf
        target: /etc/nginx/conf.d/default.conf
  watchtower:
    container_name: watchtower
    image: ghcr.io/nicholas-fedor/watchtower:latest
    volumes:
      - type: bind
        source: /var/run/docker.sock
        target: /var/run/docker.sock
    restart: unless-stopped
    environment:
      WATCHTOWER_CLEANUP: true
      WATCHTOWER_SCHEDULE: "@midnight"

Step 2: pds.env

Create /volume1/docker/bluesky-pds/pds.env with your configuration:

PDS_HOSTNAME=yourname.synology.me
PDS_ADMIN_EMAIL=your-email@example.com
PDS_ADMIN_PASSWORD=YourSecurePassword123!
PDS_JWT_SECRET=your-64-character-hex-secret-here
PDS_PLC_ROTATION_KEY_K256_PRIVATE_KEY_HEX=your-64-character-hex-key-here
PDS_EMAIL_SMTP_URL=smtp://user:password@smtp.example.com:587
PDS_EMAIL_FROM_ADDRESS=no-reply@yourdomain.com
PDS_DATA_DIRECTORY=/pds-data
PDS_BLOBSTORE_DISK_LOCATION=/pds-data/blobs
PDS_BLOBSTORE_DISK_TMP=/pds-data/tmp
PDS_SQLITE_LOCATION=/pds-data/pds.sqlite
PDS_BLOB_UPLOAD_LIMIT=104857600
PDS_ENABLE_ACCOUNT_REGISTRATION=true
PDS_DID_PLC_URL=https://plc.directory
PDS_BSKY_APP_VIEW_URL=https://api.bsky.app
PDS_BSKY_APP_VIEW_DID=did:web:api.bsky.app
PDS_REPORT_SERVICE_URL=https://mod.bsky.app
PDS_REPORT_SERVICE_DID=did:plc:ar7c4by46qjdydhdevvrndac
PDS_CRAWLERS=https://bsky.network
LOG_LEVEL=info
LOG_ENABLED=true

Replace these values:

  • PDS_HOSTNAME: your domain name (if using Synology DDNS, this will be something like yourname.synology.me)
  • PDS_ADMIN_EMAIL: your email address
  • PDS_ADMIN_PASSWORD: a strong password
  • PDS_JWT_SECRET: a 64 character hex string generated with openssl rand -hex 32
  • PDS_PLC_ROTATION_KEY_K256_PRIVATE_KEY_HEX: another 64 character hex string
  • PDS_EMAIL_SMTP_URL and PDS_EMAIL_FROM_ADDRESS: your SMTP details if you want email support

Step 3: Caddyfile

Create /volume1/docker/bluesky-pds/caddy/etc/caddy/Caddyfile:

{
    email your-email@example.com
    on_demand_tls {
        ask http://pds:3000/tls-check
    }
}

yourname.synology.me, *.yourname.synology.me {
    tls {
        on_demand
    }
    encode gzip zstd
    reverse_proxy http://pds:3000
}

hello.yourname.synology.me {
    tls your-email@example.com
    encode gzip zstd
    reverse_proxy http://pdsdash:80
}

Replace yourname.synology.me with your domain (or your Synology DDNS hostname if you went that route) and your-email@example.com with your email address.

Part 4: Deployment

Step 1: Start the Services

From your SSH session on the NAS:

cd /volume1/docker/bluesky-pds
sudo docker compose pull
sudo docker compose up -d

Step 2: Check Services

sudo docker compose ps

You should see all containers with status Up.

Step 3: Watch Logs

Check the PDS logs:

sudo docker compose logs -f pds

Press Ctrl+C to exit.

Check Caddy logs:

sudo docker compose logs -f caddy

Step 4: Test the Health Endpoint

From another machine (replace with your actual hostname):

curl -vk --resolve yourname.synology.me:443:YOUR_PUBLIC_IP \
https://yourname.synology.me/xrpc/_health

Or if you want to test without specifying the IP:

curl https://yourname.synology.me/xrpc/_health

You should get a JSON response like:

{"version":"0.4.x"}

You can also open https://yourname.synology.me/ (or your DDNS hostname) in a browser to see the PDS banner.

Part 5: Creating Invites and First User

The goat CLI tool is preinstalled inside the PDS container. All commands here run on the NAS.

Step 1: Create an Invite Code

cd /volume1/docker/bluesky-pds
sudo docker compose exec pds goat pds admin create-invites \
    --count 1 \
    --uses 1

This will output something like:

code: yourname-synology-me-xxxxxx-xxxx
uses: 1

Keep that code somewhere safe.

To create more invite codes in one go:

sudo docker compose exec pds goat pds admin create-invites \
    --count 5 \
    --uses 3

Step 2: Create Your First User

Use your invite code to create your account:

sudo docker compose exec pds goat account create \
    --pds-host https://yourname.synology.me \
    --handle alice.yourname.synology.me \
    --email your-email@example.com \
    --password 'YourSecurePassword123!' \
    --invite-code yourname-synology-me-xxxxxx-xxxx

Of course, you'll need to replace:

  • alice.yourname.synology.me with your handle (it must fit the *.yourdomain pattern).
  • your-email@example.com with your email.
  • YourSecurePassword123! with your password.
  • yourname-synology-me-xxxxxx-xxxx with your actual invite code.

On success, goat will print your DID, which looks like did:plc:something.

Step 3: List Accounts

sudo docker compose exec pds goat account list \
    --pds-host https://yourname.synology.me \
    --admin-password 'YourSecurePassword123!'

Use the admin password you set in pds.env.

Step 4: List Invite Codes

sudo docker compose exec pds goat pds admin list-invites

Troubleshooting

Port Conflicts

If Docker complains about ports, check what is using them:

sudo netstat -tuln | grep -E '8080|8443'

DNS and Certificates

If TLS certificates fail:

  • If using DDNS, check that it is updating correctly in Control Panel → External Access → DDNS.
  • Check DNS resolution: dig yourname.synology.me (or your hostname).
  • Test port forwarding with tools like telnet or nc.
  • Inspect Caddy logs:
sudo docker compose logs caddy

Permission Issues

If you see permission errors, reset ownership and permissions:

sudo chown -R $(whoami):users /volume1/docker/bluesky-pds
sudo chmod -R 755 /volume1/docker/bluesky-pds

Containers Do Not Start

Check logs:

sudo docker compose logs pds
sudo docker compose logs caddy

Restart everything:

sudo docker compose down
sudo docker compose up -d

Maintenance

View Logs

# PDS logs
sudo docker compose logs -f pds

# Caddy logs
sudo docker compose logs -f caddy

# All services
sudo docker compose logs -f

Update PDS

Watchtower will update images regularly, but you can also do it manually:

cd /volume1/docker/bluesky-pds
sudo docker compose pull
sudo docker compose up -d

Backups

Back up your PDS data regularly:

sudo tar -czf /volume1/backups/pds-backup-$(date +%Y%m%d).tar.gz \
/volume1/docker/bluesky-pds/pds-data

Security Tips

  1. Rotate secrets after the initial setup.
  2. Use strong passwords for admin and user accounts.
  3. Restrict SSH access if possible.
  4. Keep DSM and Docker up to date.

Next Steps

  • Migrate an existing Bluesky account using the official migration guide.
  • Invite friends by generating more invite codes.
  • Set up monitoring using the pdsdash dashboard.
  • Automate your backup process.

Conclusion

Wow! that was quite a mouthful, and honestly, from the length of this, it might look difficult but it really is not. If you got this far, you now have a working Bluesky PDS running on your Synology NAS. No rented VPS, no mystery cloud, just your hardware, your data, and your identity.

It feels good to run your own corner of the network.

Additional Resources

pixeline.be
Alexandre Plennevaux 🇧🇪🇪🇺

@pixeline.be

Brussels-based Web developer,
My 🐈‍⬛ is named "MouseOver".

Into web building, ATproto, the Russo-Ukraine war, rare strokes of wisdom and the occasional (good / dad) joke.

Play: @mathr.app
Pimp ya'self: @hopefully.blue
Me: https://pixeline.be

Post reaction in Bluesky

*To be shown as a reaction, include article link in the post or add link card

Reactions from everyone (0)

Installing an AT Protocol PDS on a Synology NAS | Alexandre Plennevaux 🇧🇪🇪🇺 | WhiteWind blog
