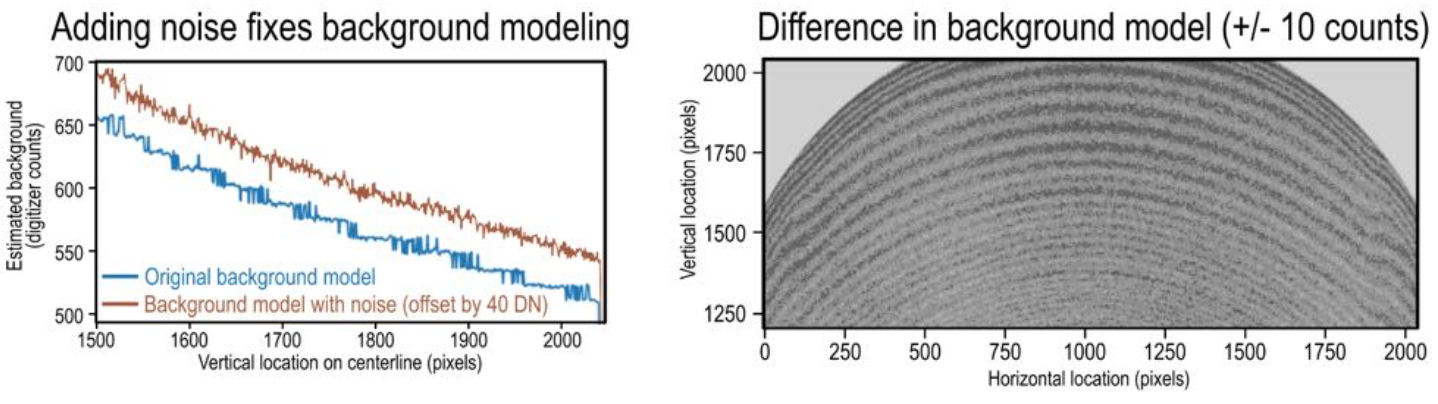

PUNCH models of background light in the instruments were developing “stairstepping” errors
(blue trace at left); this is resolved by adding artificial noise to the data, to reconstitute photon
counting noise that is removed on-orbit. Adding noise yields smoother background models
(orange trace, which is offset upwards for clarity). Difference images between the models (right)
reveal the stairsteps that are removed with the additional noise.
PUNCH compresses its images on-orbit with "square-root coding", to avoid downlinking photon counting noise (Nugget #13, Don't Downlink Quantum Noise). Removing the photon noise affects the statistics of remaining noise in the data, in a way that depends on the original data value. That, in turn, affects measurements of stray light in the instruments, putting a faint pattern of stripes in PUNCH photometric data (visisble as the "stairstep" pattern in the blue trace at left).
Ironically, adding "fuzz" on the ground, to reconstitute the photon noise removed on-orbit, makes the data more unifrom and better to analyze. Reconstituting the missing photon noise is critical to keeping the uniform statistics we need to model the stray light in PUNCH. Reconstituted ("fuzzed") data yields very smooth background estimates (orange trace at left, which is offset upward to separate it from the blue). Difference images between background models derived from original data and fuzzed data (right) clearly show the stripes that are being removed.
Because PUNCH requires very precise relative photometry (variations in sensitivity of under 0.1% across the joint field-of-view of all three WFI instruments), even very tiny effects (like these ±5 digitizer count "stairsteps") matter. PUNCH is rolling out new data product versions about every two weeks, as we refine calibration methodology to produce the best products possible.
*This is PUNCH Nugget #22. PUNCH nuggets are archived at the PUNCH mission website. You can sign up to receive PUNCH nuggets by email.
